Product Description

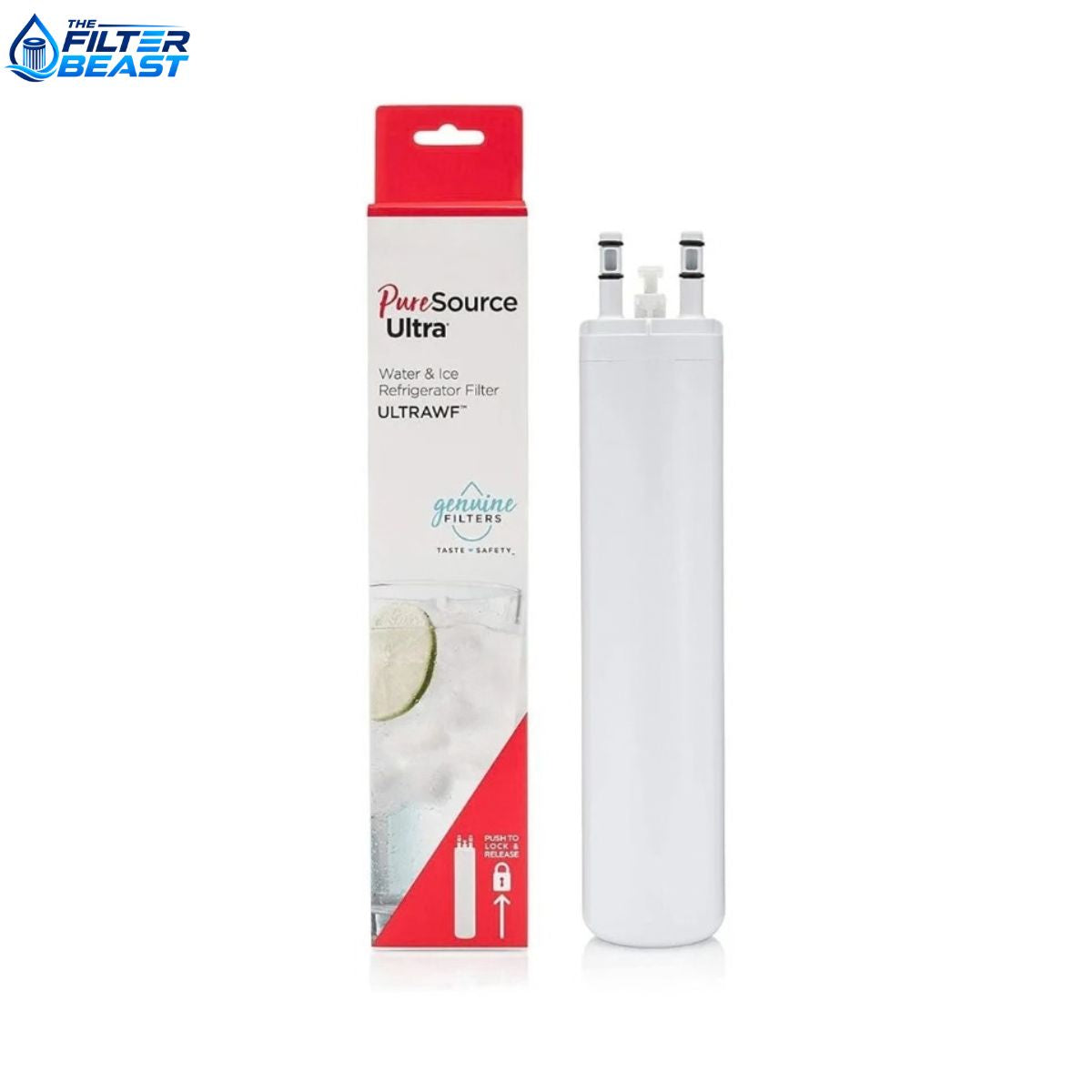

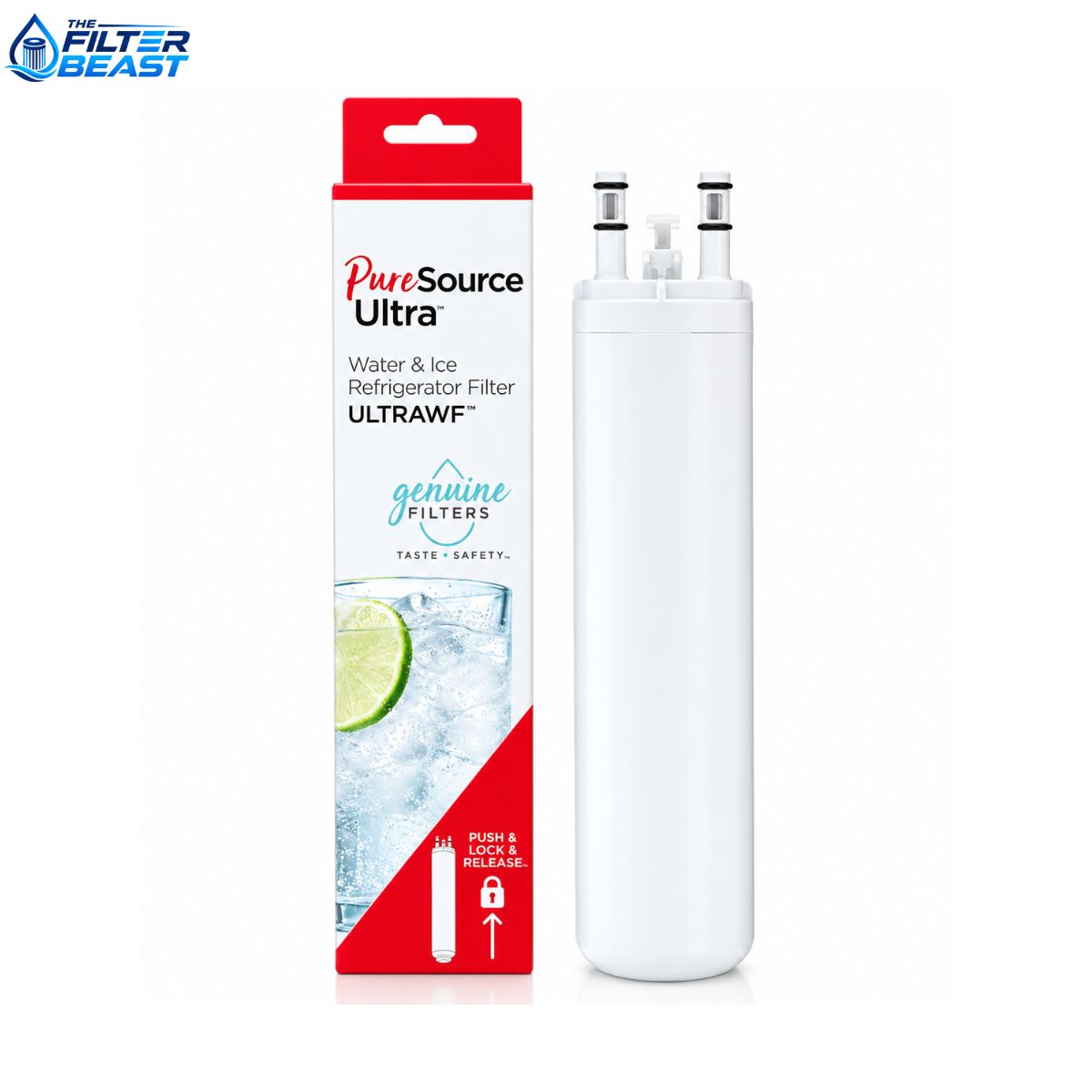

The Frigidaire ULTRAWF PureSource Ultra Refrigerator Water Filter is designed for select Frigidaire refrigerators and compatible appliances that use the PureSource Ultra filtration system. This cartridge uses activated carbon block filtration to help reduce chlorine taste and odor, particulates and other specified contaminants from refrigerator water and ice.
The ULTRAWF provides a convenient way to maintain fresh-tasting drinking water directly from your refrigerator dispenser and ice maker. It has a rated service life of approximately 200 gallons or 6 months, whichever comes first.
The filter features a push-to-release / slide-in installation design, allowing routine without special tools.
Compatible Filter Numbers
The ULTRAWF is associated with the following and cross-reference numbers:
- ULTRAWF
- ULTRA-WF
- 242017800
- 242017801
- 242017805
- 242294401
- 242294404
- 1534529
- 5304520985
- 807472702
- A0094E28261
- PN242017801
- PS2364646
- AQF-122AWF
- JBND-27
- JBND27
- JSI-26
- Kenmore 46-9999
- Kenmore 9999
- Kenmore 046-9999
- ClearChoice CLCH121
- ClearChoice CLCH121-L
- ClearChoice CLCH121-N
- GlacialPure GP004
- Filters Store FS002
- Waterfall WFC4401
These cross-reference numbers are compiled from the researched ULTRAWF listings. Always verify the existing filter number and refrigerator model before ordering.
Key Features
- Frigidaire PureSource Ultra refrigerator water filter
- Part number ULTRAWF
- Designed for select Frigidaire refrigerators
- Compatible with select Kenmore refrigerators using the 9999 filter
- Activated carbon block filtration
- 200-gallon filter capacity
- Approximately 6-month filter life
- 0.5 GPM flow rate
- 30–100 PSI operating pressure
- 33–100°F operating temperature
- Approximately 11" × 2¼"
- Push-to-release / slide-in design
- Tool-free filter
- Helps reduce chlorine taste and odor
- Helps reduce specified particulates and contaminants
- NSF/ANSI 42 and 53 certification listed for the ULTRAWF product
- Single-filter cartridge
What's Included
1 × Frigidaire ULTRAWF PureSource Ultra refrigerator water filter
Pack size: 1 filter.
Product Specifications
| Specification | Details |
|---|---|
| Brand | Frigidaire |
| Part Number | ULTRAWF |
| Product Type | Refrigerator Water Filter |
| Filter Series | PureSource Ultra |
| Filter Media | Activated Carbon Block |
| Pack Size | 1 |
| Filter Capacity | 200 gallons |
| Recommended Filter Life | 6 months |
| Flow Rate | 0.5 GPM |
| Dimensions | 11" × 2¼" |
| Operating Pressure | 30–100 PSI |
| Operating Temperature | 33–100°F |
| Installation | Push-to-release / Slide-in |
| Certifications Listed | NSF/ANSI 42 & 53 |
The above specifications are based primarily on the ULTRAWF listings.
Filtration Performance
The ULTRAWF uses activated carbon block media to help improve the taste and odor of refrigerator water and ice.
The researched ULTRAWF information identifies the filter as reducing or addressing specified contaminants including:
- Chlorine taste and odor
- Lead
- Mercury
- Particulates
- Turbidity
- Cysts
- Selected chemical contaminants
- Unpleasant tastes and odors
The Filters Fast listing identifies the ULTRAWF with NSF/ANSI Standards 42 and 53.
Only make certification and contaminant-reduction claims for the exact product you stock and according to its applicable certification documentation.
Compatible Refrigerator Models
The ULTRAWF is used across a large range of Frigidaire, Electrolux, Crosley and compatible refrigerators.
Examples identified in the Filters Fast compatibility database include:
Frigidaire
- BGHS2634KE
- BGHS2634KP
- BGHS2644KF
- CFD26SDS
- CFD26WIS
- CFD27SDPS
- CFD27WIPB
- CFD27WIPS
- CFD27WIPW
- CFD28SDQS
- CFD28SDS
- FFHB2740
- FFHN2740
- FGHB2866
- FGHC2331
- FGHC2355
- FGHF2366
- FGHG2366
- FGHN2866
- FGHS2355
- FGHS2655
- FPHB2899
- FPHF2399
- FPHS2399
- FPHS2699
- LFHB2741
- LGHB2867
Electrolux
Compatible models include various:
- CFD27WIP series
- CFD28WI series
- DGHF2360 series
- FFHB2740 series
- FFHN2740 series
- FGHB2866 series
- FGHC2331 series
- FGHC2355 series
- FGHF2366 series
- FGHG2366 series
- FGHN2866 series
- FPHB2899 series
- FPHF2399 series
- FPHS2399 series
- LFHB2741 series
- LGHB2867 series
Crosley
The researched database also includes various Crosley CFD28WI refrigerator models.
The complete compatibility database contains many model-number revisions and suffixes, so verify your exact refrigerator model before ordering.
When Should You Replace the ULTRAWF?
The ULTRAWF is rated for approximately 200 gallons or 6 months, whichever comes first.
Actual filter life depends on household water consumption and incoming water quality.
Replace the cartridge sooner if you notice:
- Reduced water flow
- Changes in water taste
- Changes in water odor
- Reduced dispenser performance
- Reduced ice-maker water flow
Installation
The ULTRAWF is designed for quick.
- Open the refrigerator and locate the water-filter housing.
- Release or remove the existing filter according to your refrigerator's design.
- Slide the new ULTRAWF into the filter housing.
- Push the filter into place until it locks or clicks.
- Confirm the cartridge is securely seated.
- Dispense and discard several glasses of water to flush the new filter.
- Reset the refrigerator's filter indicator if your model has one.
The exact installation and filter-reset procedure may vary by refrigerator model, so consult the appliance's Use & Care Guide when necessary.
FAQ
What is the Frigidaire ULTRAWF?
The ULTRAWF is a Frigidaire PureSource Ultra refrigerator water filter designed for select Frigidaire and compatible refrigerators.
How long does the ULTRAWF last?
The filter is rated for approximately 200 gallons or 6 months, whichever comes first.
What type of filter media does ULTRAWF use?
The ULTRAWF uses activated carbon block filtration media.
What is the ULTRAWF flow rate?
The researched specifications list a flow rate of approximately 0.5 GPM.
What are the dimensions of ULTRAWF?
The ULTRAWF is approximately 11 inches long × 2¼ inches in diameter.
Is ULTRAWF the same as WF3CB?
No. ULTRAWF and WF3CB are different Frigidaire filter cartridges. ULTRAWF is approximately 11" × 2¼", while WF3CB is approximately 9" × 2½". They should be listed as separate products unless your specific inventory documentation confirms otherwise.
What filters can replace ULTRAWF?
Common cross-reference numbers include 242017800, 242017801, 242017805, 242294401, 242294404, A0094E28261, PS2364646, Kenmore 9999 and ULTRA-WF.
Is ULTRAWF a refrigerator air filter?
No. ULTRAWF is a refrigerator water filter designed to filter water supplied to the refrigerator dispenser and ice maker.
Important Compatibility Note
Before ordering, verify:
1. The part number printed on your existing filter
2. Your refrigerator's complete model number
3. The physical shape and installation style of the existing cartridge
This is particularly important with Frigidaire because PureSource Ultra (ULTRAWF), PureSource3 (WF3CB), and PureSource2 (WF2CB) are different filter families.
